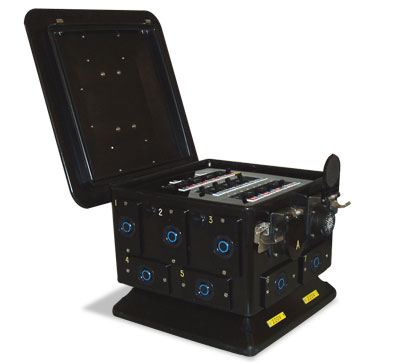

Lex Moving Light Pagoda Combination
Product Line
PowerHOUSE™ Portable Distribution BoxesDescription
200 A, 3 Ø Pagoda (A40) to NEMA L6-20 Locking and 6 circuit 20 Amp 220 VAC LSC 19 Pin Receptacles Wired in ParallelCatalog Number
DB160NP-ADDMS1Markets Served
Concert Production, Theatrical, Live EventsApplication
This box can power 12 moving lights at a remote location with NEMA L6-20 plugs or two 6 circuit 220VAC multicables. The two types of receptacles are wired in parallel.Features & Benefits
- Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather.
- Extremely compact for convenient portability.
- Breakers mounted under a hinged lid for enhanced safety and protection.
| Rating: | 200 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz |
|---|---|
| Environmental Rating: | NEMA Type 1 (Indoor Use) |
| Input: | (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, panel mount |
| Feed Thru: | None |
| Main Breaker: | None |
| Output: | (12) NEMA L6-20, 20 Amp, 2-pole, 3-wire, 250 VAC, locking receptacles, panel mount wired in parallel with (2) LSC19, (6) x 20 Amp, 2-pole, 3-wire, 250 VAC, 19-pin locking receptacles, panel mount; (1) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount |
| Overcurrent Protection: | (12) 20 Amp, 120/240 VAC, double-pole, hydraulic magnetic, branch-rated circuit breaker; (1) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers |
| Enclosure Type: | Pagoda™ |
| Dimensions: | 14.25"L x 14.25"W x 14.15"H |
| Weight: | 32.0 lbs |
| Agency Approval: | cULus Listed |
