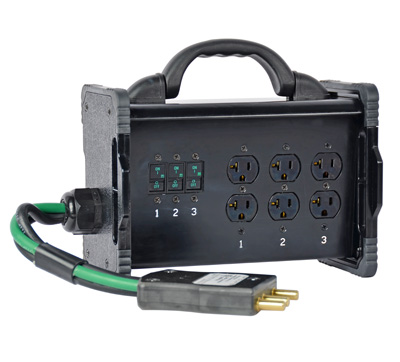

Lex 60 Amp Hollywood Box to (3) NEMA 20 Amp Circuits

Product Line

Description

60 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, Bento Enclosure, Stage Pin plug on 12 inch SC cable tail to (3) 20 Amp circuits with (3) NEMA 5-20, 20 Amp duplex receptacles, NEMA 1 Indoor

Catalog Number

Markets Served

Motion Picture and Television Production

Application

This compact unit provides convenient NEMA 5-20, 20 Amp household type receptacles to power lights on motion picture sets.

Features & Benefits

• Stackable and compact for easy storage
• Heavy duty extruded engineered thermoplastic enclosure is electrically insulated, resistant to shock,impact and corrosion
• Breakers are mounted flush for easy access and circuit identification
• Collapsible handle and end plate grips for easy handling in tight spaces
• Hydraulic magnetic breakers will not nuisance trip at higher temperatures

Specifications

• Rating: 60 Amp, Single Phase (H, N, G), 2 Pole, 3 Wire, 120 VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) 60 Amp Stage Pin plug on 12 inch SC cable tail, Single Phase, 2 Pole, 3 Wire, 120 VAC
• Output: (3) 20 Amp circuits with (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC duplex receptacles
• Feed Thru: None
• Overcurrent Protection: (3) 20 Amp hydraulic magnetic branch circuit rated breakers
• Dimensions: 10.5" L x 5.9" W x 7.6" H
• Approximate Weight: 6.6 lbs.
