Product Description

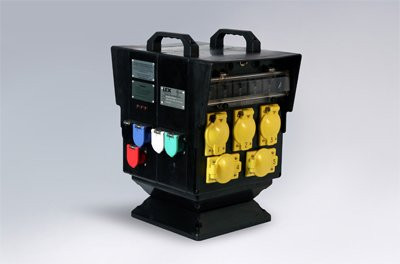

200A 120/208 VAC, (1) Set of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (10) NEMA L21-20 Locking Receptacles, Hammerhead
| Part Number | DB200N1J10DM-63-2 |
|---|---|
| Markets | Entertainment Industrial |
| Rating | Outdoor |
| Enclosure | Box |
| Input | Cams |
| Output | NEMA |
| Amperage | 200A |
| Certifications |  |
- Separates a 200 Single Amp, 3 Phase circuit into (10) L21-20, 20 Amp locking receptacles
- The locking mechanism ensures positive connection and prevents disconnecting under load
- The 20 Amp circuits are used to power fans, pumps, lights, light portable tools and NEMA 5-20, 20 Amp Edison quad stringers
- Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather
- Circuit breakers are mounted under hinged window for easy access and enhanced safety
- Electrical distribution boxes have an elevated base keeps receptacles above ground level
| Rating: | 200 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC |
|---|---|
| Environmental Rating: | NEMA Type 3R (Weather Resistant) |
| Input: | (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount |
| Feed Thru: | None |
| Main Breaker: | None |
| Output: | (10) NEMA L21-20 , 20 Amp, 4-pole, 5-wire, 120/208Y VAC, locking receptacles, cover doors, panel mount |
| Overcurrent Protection: | (30) 20 Amp, 120/208Y VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers |
| Enclosure Type: | Hammerhead™ |
| Dimensions: | 15.00"L x 18.00"W x 22.00"H |
| Weight: | 75.0 lbs |
| Agency Approval: | cULus Listed |
