Product Description

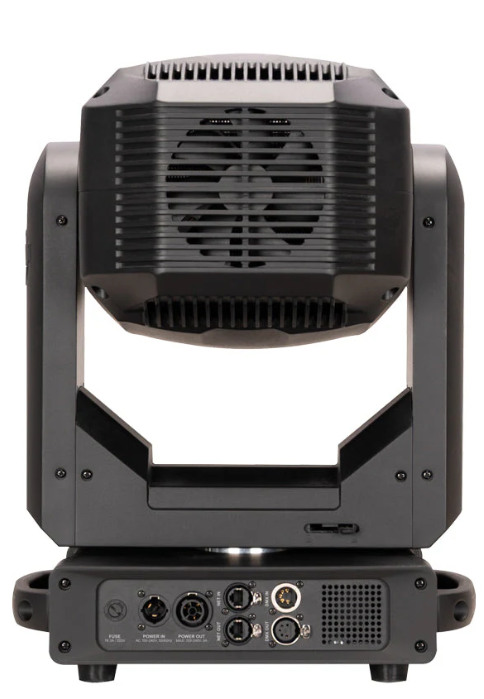

Delivering best-in-class power and versatility, the ADJ Focus CMY Compact is an automated luminaire capable of functioning interchangeably as a beam, spot or wash. Powered by a 400-watt LED engine it delivers output of up to 14,500 lumens. An extensive suite of beam shaping tools begins with full CMY + CTO color mixing and also includes two GOBO wheels, two rotating prisms, two frost filters, and Aria X2 wireless, as well as motorized zoom (3°~52°) and focus. All of this is packed into a compact and robust fixture that weighs less than 45 lbs. (20kg).
Specifications
SOURCE
- 400W LED Engine
- Color Temperature: 6900k (+/-350k)
- 20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 14,500 Total Lumens
- CRI: 64 (80 or 90 with HCRI Filter)
EFFECTS
- 6-Facet Circular & 6-Facet Linear Rotating Prisms
- 2x Frost Filters (Light and Heavy)
- Motorized Zoom: 3°~52°
- Motorized Focus
- Electronic Dimming & Strobe: 1-20Hz
COLOR
- Full CMY color mixing
- Variable CTO (3200K to 8500K)
- Colors Wheel with 7 dichroic colors (Includes High CRI Filter in slot 7)
GOBOS
- (2) Gobo Wheels
- #1 - (8) Rotating Glass Gobos (Interchangeable and Indexable)
- #2 - (10) Static Glass Gobos
CONTROL / CONNECTIONS
- (3) DMX Channel Modes - Basic (26ch) / Standard (31ch) / Extended (40ch)
- DMX, RDM, sACN and ArtNet
- Aria X2 Wireless Management System
- NFC System
- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement
- RJ45 In/Thru Network Ports
- 3 & 5 pin XLR DMX In/Out
- IP65 Locking Power In/Out
- With Wired Digital Communication Network
PAN / TILT
- Pan: 540/630-degrees
- Tilt: 270-degrees
- Pan & Tilt Locks
SIZE / WEIGHT
- Length: 14.2" (360mm)
- Width: 9.3" (234mm)
- Vertical Height: 23.5” (597mm)
- Weight: 44.5 lbs. (20.2kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- Max Power Consumption: 450W @ 220V.
- Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
- Max housing temperature: ?°F (?°C)
TECHNICAL DATA
- DB Rating @ 3ft.: ?dB
- BTU: 0.43
- BTU/H: 1,534.50
APPROVALS / RATINGS
- CE
- FCC
- cETLus (Control # 4010765)
- IP20
INCLUDED ACCESSORIES
- (1) Power cable
- (2) Omega brackets
ROAD CASE:
• (2) Focus CMY Compact fixtures fit in the ADJ DRC MHX Road Case
Specifications and documentation subject to change without notice.
