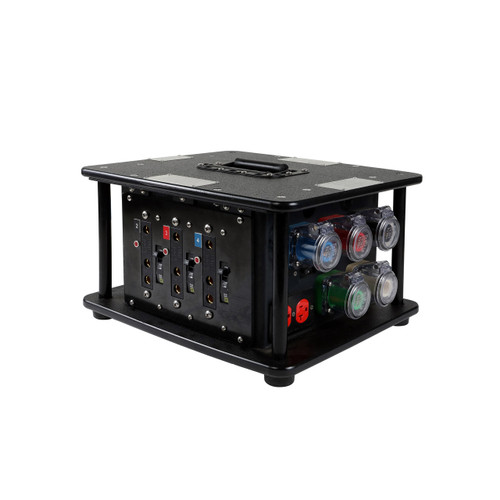

Lex 600 Amp CineBox™ Motion Picture Box
400A 120/208 VAC, (5) 16 Series Cam-type, Single Pole Males (Inlets) to (6) 100A Stage Pin Receptacles, Feed Thru, CineBox™
- Provides 100 Amp stage pin receptacles for high power lighting effects or to distribute power further downstream.
- 5-20 Duplex receptacles provide convenient power for smaller lights.
- The feed thru feature allows multiple boxes to be placed along the same feed.
- Stackable compact design for easy storage and portability
- Heavy-duty, non-conductive material construction is electrically insulated and resistant to shock, impact and corrosion
- Breakers are mounted for easy access and circuit identification
- Hydraulic magnetic breakers will not nuisance trip at higher temperatures
Motion Picture and Television Production
- Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating: NEMA 1 (Indoor Use)
- Input: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, panel mount
- Output: (6) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin receptacles; (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
- Feed Thru: Yes
- Overcurrent Protection: (6) 100 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers; (2) 20 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers
- Dimensions: 14.125" D x 16.25" W x 9.75" H
- Weight 48.0 lbs
-Agency Approval: cULus Listed
