Product Description

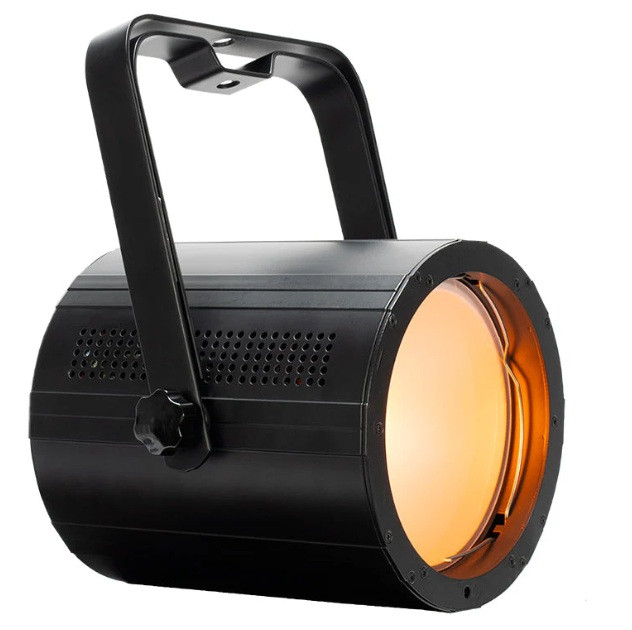

Featuring a high output 200-Watt COB (Chip On Board) LED engine, the ADJ COB Cannon LP200STX is a potent color mixing wash lighting fixture. It’s 5-in-1 light source combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors with a high CRI, plus a tunable white color temperature between 2300K and 9900K. A compact and versatile fixture, it offers a wide 80-degree native beam angle but is also supplied with both 40-degree and 50-degree lens options. This fixture includes the Aria X2 wireless management system.
Specifications
• Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber Lime), LED Engine
• LED Engine Life Rating: Approximately 50,000 hrs.
• CRI: >90
• Tunable White Color Temperature: 2300~9900K
• 80-degree beam angle
• Includes lens kit to change to 40-degrees or 50-degrees beam angle
FEATURES:
• Embedded Aria X2 Wireless Management System
• Primary / Secondary Mode
• Flicker Free operation (No flickering on camera)
• Produces powerful, smooth RGBAL color mixing with
rich palettes of color

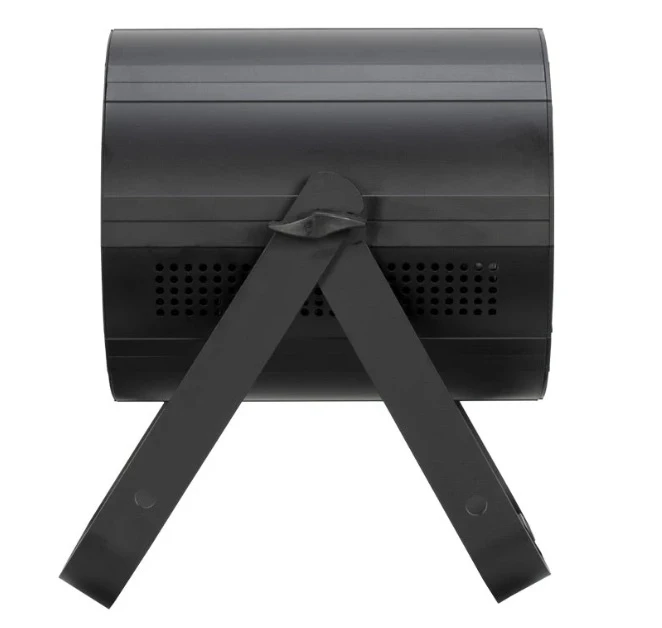

• Scissor yoke allows fixture to be mounted on truss or
set on the ground
• Optional Barn Doors (BAR001) sold separately
CONTROL:
• 10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)
• Linear color temperature control via DMX
• Built-in color temperature presets accessible via DMX
• 64 built-in color macros
• 4-button OLED digital DMX display on rear panel
• Compatible with the ADJ UC IR24 remote control (included)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 selectable Dim Modes (Standard, Stage, TV,
Architectural, Stage 2 Theatre)
• 4 selectable Dim Curves (Square, Linear, Inv. Squa S.Curve)
• Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)
CONNECTIONS:
• 5-pin XLR connectors for DMX data linking (5-Pin DMX only as of June 2023)
• Indoor locking power In Out connections to daisy chain power
ELECTRICAL:
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Power Draw: 175W max
• Daisy chain up to 5 fixtures (120V) or 10 fixtures (230V) maximum
DIMENSIONS / WEIGHT:
• With Bracket: 13" (330mm) x 10.3" (262mm) x 7.5" (190mm)
• Without Bracket: 10" (254mm) x 10.3 (262mm) x 7.5" (190mm)
• Weight: 9.45 lbs. / 4.30 kg.
WHAT’S INCLUDED:
• (1) 50-degree lens
• (1) 40-degree lens
• UCIR24 Wireless IR Remote
• Power Cord
• Scissor Yoke
• Omega Bracket
